Quality 3-Ch Relay Expansion Board Designed For Jetson Nano, Optocoupler Isolation
Module for Nvidia Jetson Nano equipped with 3 relays with optocoupler isolation. It has a 40-pin GPIO connector that can be connected directly to Jetson Nano. The maximum load of the relay is ≤ 5 A 250 V AC or ≤ 5 A 30 V DC. Module with external dimensions of 100 x 79 mm.
Weight: 0.087 kg
- 3-CH Relay for Jetson Nano x1
- Acrylic panel x1
- Screws pack x1
Features At A Glance
- Standard 40PIN GPIO header, directly pluggable onto the Jetson Nano
- Incorporate quality relay component, max load: ≤5A 250V AC or ≤5A 30V DC
- Optocoupler isolation, prevent interference from the high voltage circuitry
- Indicators for monitoring the relay operating status
- Control pins of relays are configurable via jumpers
- Acrylic bottom panel, isolating the Jetson Nano from the relay expansion board
- Comes with development resources and user manual (python and python-bottle examples)
What Can It Do?
It Will Give Your Jetson Nano The Ability To Control High Voltage Home Appliances, And More…

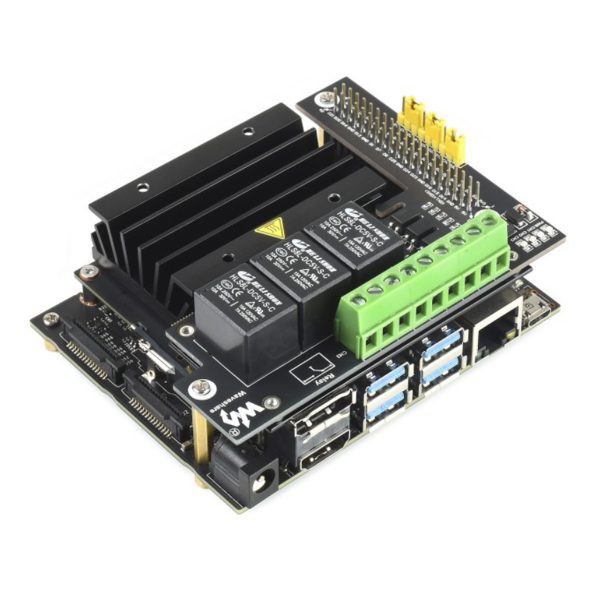

Tailored For Jetson Nano
Jetson Nano Developer Kit B01 (Left) And Jetson Nano 2GB Developer Kit (Right)

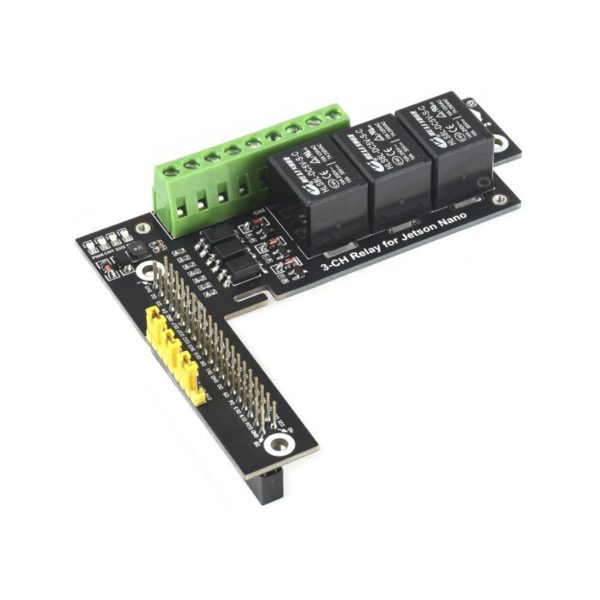

3-Ch Relay Control
Quality Relay Component With Optocoupler Isolation

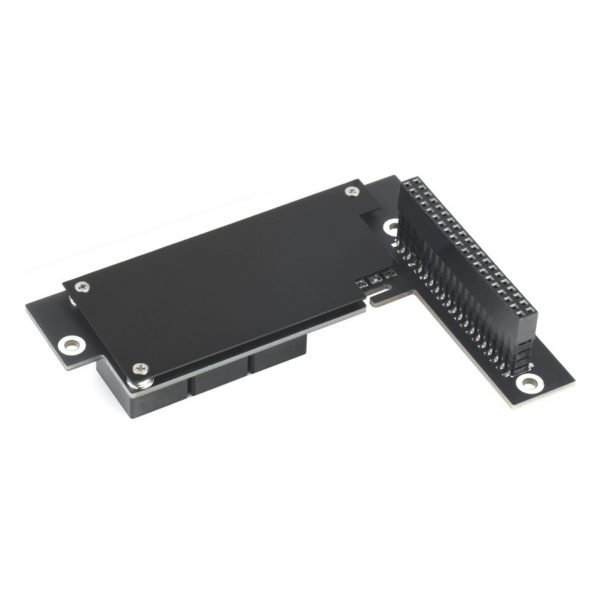

Isolation Bottom Panel, Prevent Interference From The High Voltage Circuitry
Indicators And Selection Jumpers
Easy To Monitor The Relay Operating Status, Control Pins Of Relays Are Configurable

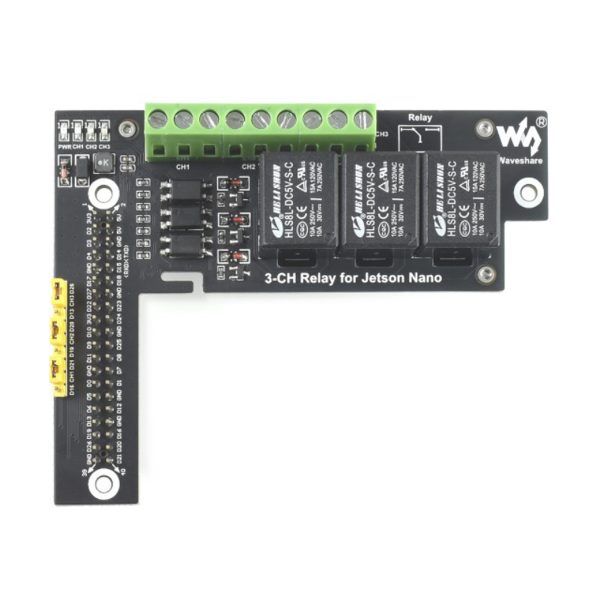

What’s On Board
- 40PIN GPIO header
- Relay screw terminals
- Relay components
- Optocouplers
- Relay operating indicators
- Power indicator
- Relay control pin selection jumpers
Pinout Definition
Outline Dimensions
