Professional self-build drone – 4 axis F450-V2 RC Drone Quadrocopter, APM flight controller, Remote control MC6C
QWinOut brand
The model name is f450
Age range (description) Adult
Beginner skill level
Capacity 2200 Milliamp Hours
Control type Remote Control
Maximum range 500 Meters
Nylon material
Composition of the Lithium Polymer battery cell
Batteries not included
1. Package 1: Full set of control and reception
Upgraded F450*1

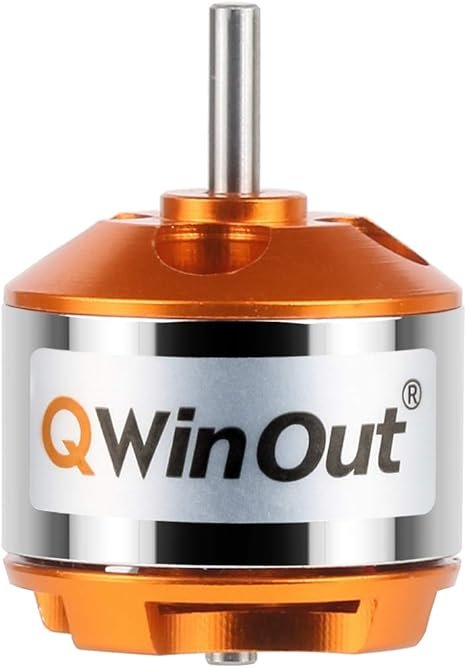

F15843*3: 920KV CCW*3 motor
F15844*3: 920KV motor CW*3
F18203*4: 30A ESC with BEC 5V 2-4S output support
F07276*2: Propeller 9443 Positive and negative propeller
F15441: APM flight control with compass (straight needle)*1
F02195: MWC cable*1
F00149: banana head 3.5 mm*12
F00157: Package 20 cm against buckle/1 package
F02105: T-shaped head (male) with silicone cable #14/10 cm *1
MC6C transmits a 2.4G receiver including 6 remote control channels for airplanes and drones
TIP
If your frame is not listed in the reference then use a “generic” airframe of the correct type. ::: infos:
- The output rail must be separately powered, as discussed in the Power section above.
- Pixhawk Mini cannot be used for QuadPlane VTOL airframes. This is because QuadPlane requires 9 outputs (4 Main, 5 AUX) and the Pixhawk Mini only has 8 outputs (8 Main).
Other Peripherals
The wiring and configuration of other components is covered within the topics for individual peripherals.
Configuration
General configuration information is covered in: Autopilot Configuration.
QuadPlane specific configuration is covered here: QuadPlane VTOL Configuration
Building Firmware
TIP
Most users will not need to build this firmware! It is pre-built and automatically installed by QGroundControl when appropriate hardware is connected.
User manual for F450 DRONE
About this item
All soldering parts have been finished. All you need is assembly.
F450 Multicopter Nylon Fiber Airframe kit Strong Smooth for DIY Drone Kit, Colored arms for orientation to keep you flying in the right direction, and large mounting tabs on main frame bottom plate for easy camera mounting.
30A Brushless ESC Speed Controller have been set up the program: simonk firmware, do not need additional program.
APM 2.8 Flight Controller Build-In Compass, 3-axis Gyro, Accelerometer and Magnetometer, Along with a High-performance Barometer with Protective Case But No Shock Absorber! APM is An Open Source Flight Control, Can You Play APM Well Depend On Individual Ability.
Player Must Have Ability Of Basic Understanding Of Monolithic Integrated Circuit, c-Language, Knowledge of Electrical, Mechanical, and Also Needs a Certain Degree Of Mental Capacity, Financial and Material Resources, Energy Support. Any questions, please keep in touch with us
Product Technical Details
| Battery Cell Composition | Lithium Polymer |
| Are Batteries Included | Yes |
| Remote Control Included? | Yes |
| Product Dimensions | 14.17″L x 7.48″W x 9.84″H |
| Manufacturer | HAWK’S WORK |
| Item Weight | 5.46 pounds |
| Item model number | F450 |
| Batteries | 1 Lithium Metal batteries required. (included) |
| Manufacturer Part Number | F450 |
How to Make a Drone with F450 Quadcopter Frame
Basic Parts You Need to Make a Drone
When embarking on the exciting journey of building your own drone, understanding the basic components is essential. The frame is the foundation, providing structural integrity and housing for other parts. Pairing the frame with reliable 1000kv BLDC Motors ensures efficient propulsion, while Electronic Speed Control units manage motor speed and direction. Available in various sizes and pitches, propellers are crucial for generating lift and thrust. Connectors facilitate seamless integration between components, enhancing overall functionality. The Power Distribution Board efficiently distributes power from the batteries to all drone components. Speaking of batteries, selecting the right one is crucial for optimal performance and flight time. A Battery Monitor adds an extra layer of safety by keeping tabs on battery health.
Creating your own drone with an F450 Quadcopter Frame is an exciting project that can be both rewarding and educational. To start, assemble the frame according to the manufacturer’s instructions, ensuring the arms are securely attached to the center plate. Next, mount the brushless motors on each arm, aligning them properly and securing them with motor mounting screws. Connect the Electronic Speed Controllers (ESCs) to the motors, following each motor’s rotation direction (clockwise or counterclockwise). Then, the flight controller is installed in the center of the frame, using vibration-damping materials to reduce vibrations. Connect the ESCs, receiver, and other peripherals to the flight controller per the manufacturer’s guidelines. Once everything is connected, calibrate the flight controller and ESCs and test the drone in a safe, open area. Make any necessary adjustments and enjoy flying your custom-built drone!
Drones are a new breed of RC plane that can take photos and record amazing videos during flight
Most people will buy a drone. However, people like do-it-yourself projects may enjoy building these devices from scratch. If you also like this craft, you can buy drone kits and enjoy piecing them together like a Lego puzzle.
This article will take you through the basics of building a drone from scratch. As expected, this can be an extremely complicated project, depending on the type of drone you want to build and the materials necessary. This article will give you a general outline of what it looks like to make a DIY quadcopter drone, and hopefully, this will help you understand whether you truly want to take on this project. No one is saying it will be easy, but some people find the end satisfaction more than worth it!
