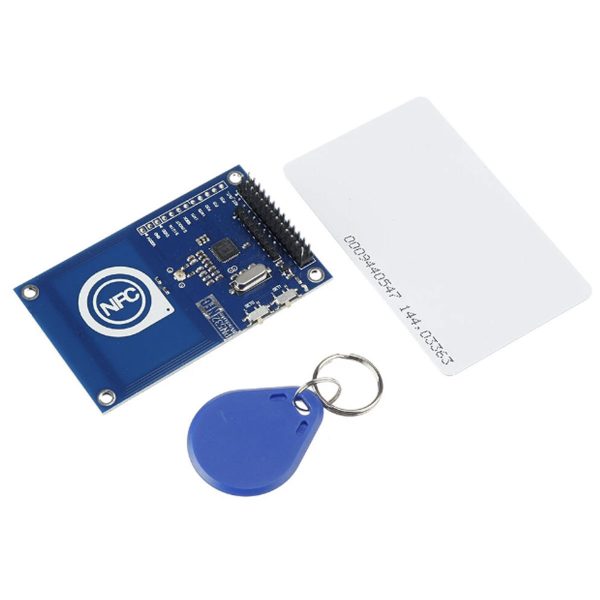

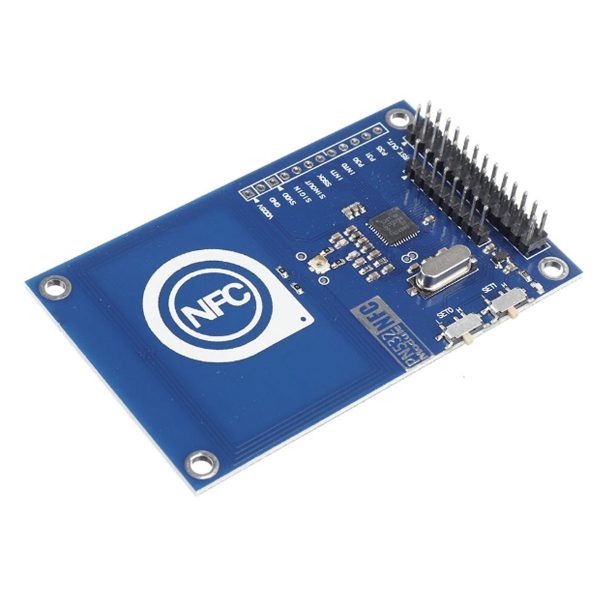

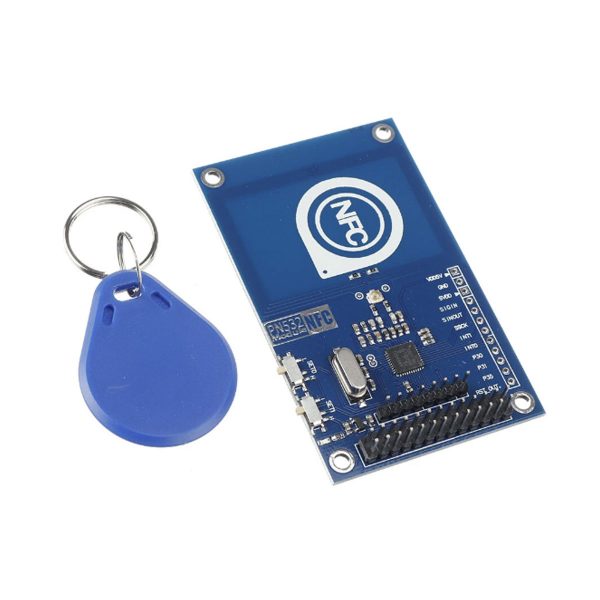

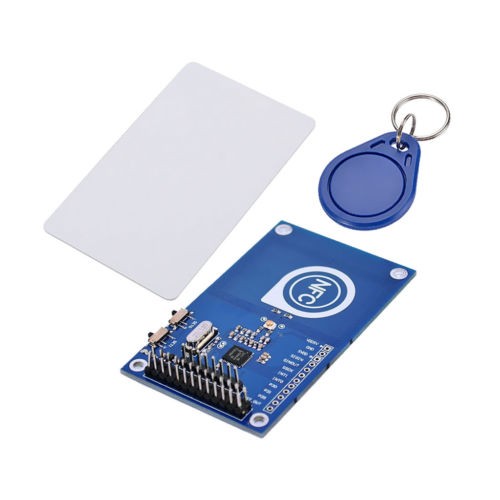

Module Arduino Nfc Pn532
The module is a dynamic NFC evaluation board to allow expansion of the STM32 cards. It is compatible with the Arduino UNO R3 connector. It can be used for an I2C interface or a 13.56MHz RFID reader or an NFC phone.
Features:
1. Longest effective communication distance of 3 cm

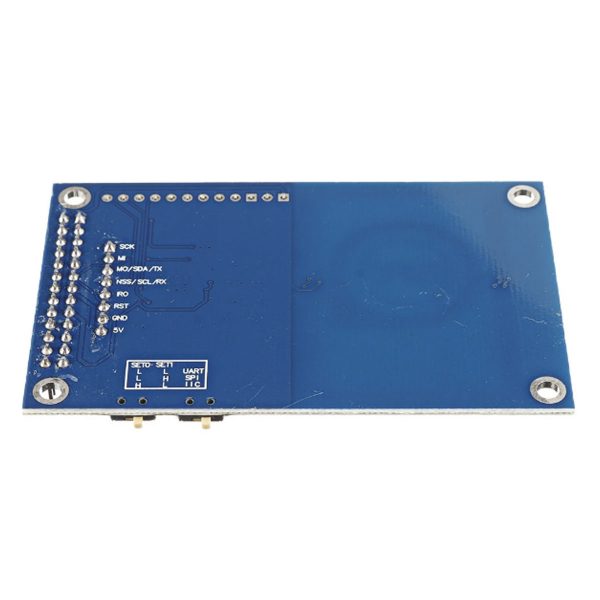

2. Supports switching of SPI, IIC and UART interface.
3. Can be used for 13.56M non-contact communication
4. Compatible with ISO14443 Type A and Type B standards
Specifications:
IC: PN532
Operating Voltage:3.3V
Power Supply Voltage:3.3~5.5V
Max Supply Current:150mA
Working Current(Standby Mode):100mA
Working Current(Write Mode):120mA
Working Current(Read Mode):120mA
Indicator:PWR
Interface:SPI Interface, Std Raspberry Pi 20pins Interface
