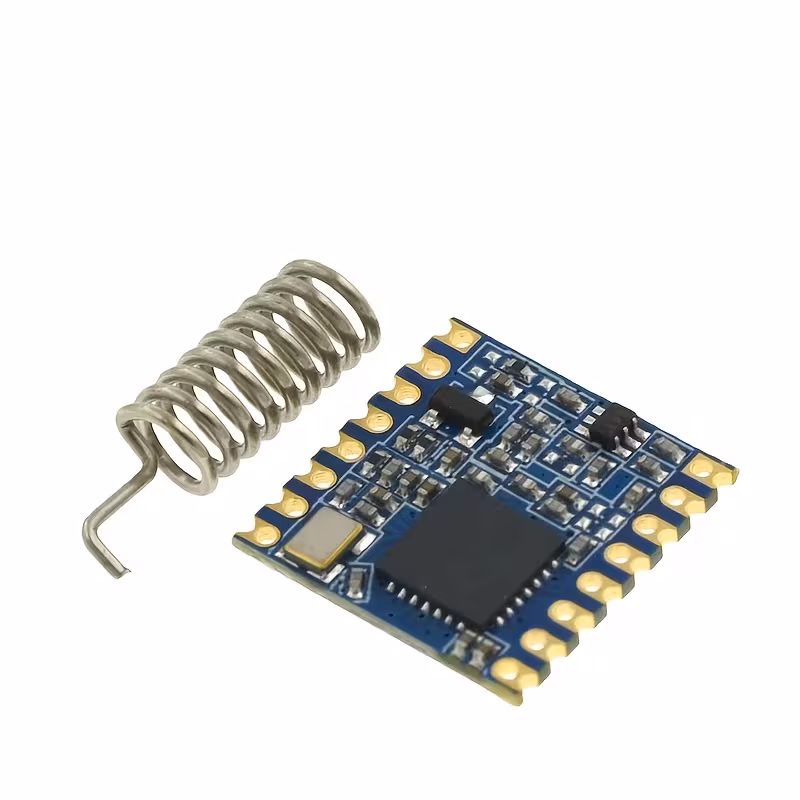

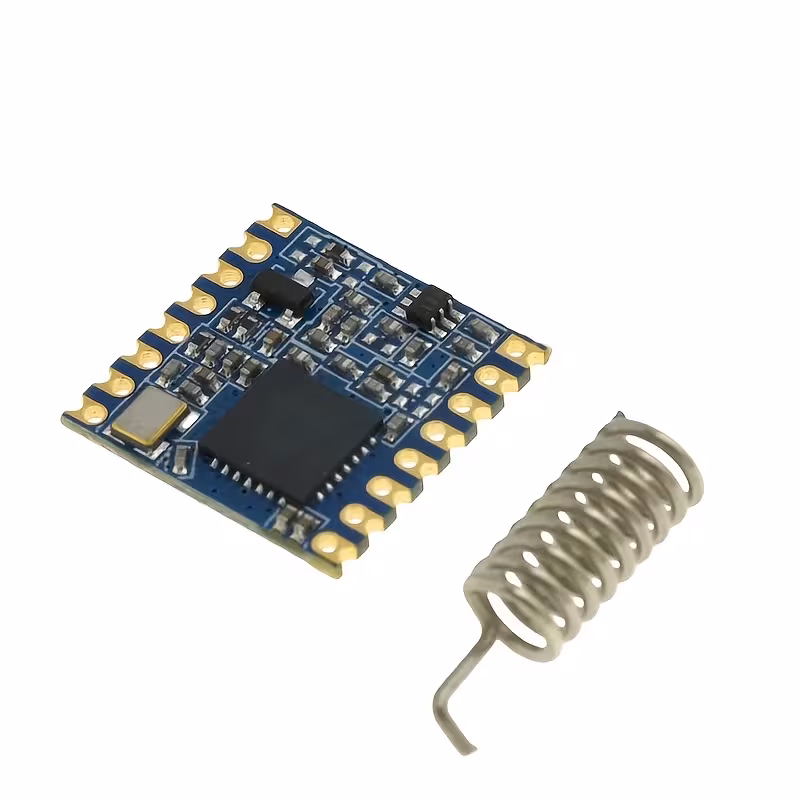

Lora Module SX1276 SX1278 868m/915Mhz Long Range Spread Spectrum Lora Transceiver Module

SX1276 Lora 868Mhz Wireless Transceiver Module LORA/GFSK Long-range Wireless Communication Spread Spectrum Module FSK/GFKS Technology, LoRa Spread Spectrum Technology (Long-range) Half-duplex Communication Super Anti-interference (Channel Rejection Ratio: 56db) High Receiver Sensitivity -139dbm ISM Multi-band, no need to apply the frequency for free use
Multi-frequency optional, a variety of transmission rates. FDMA and FM technology can be used Intelligent reset, low voltage monitoring, wake-up time, low power mode, sleep mode Low power reception current: 10-12mA, Output: 256-bit FIFO TX / RX RSSI channel detection function Transmission mode: FIFO / direct mode (FIFO packet mode is recommended) Configuration: AFC / air operation / low power consumption / subject sensing / FEC error correction / AEC encryption Ultra-long distance transmission up to 3km open

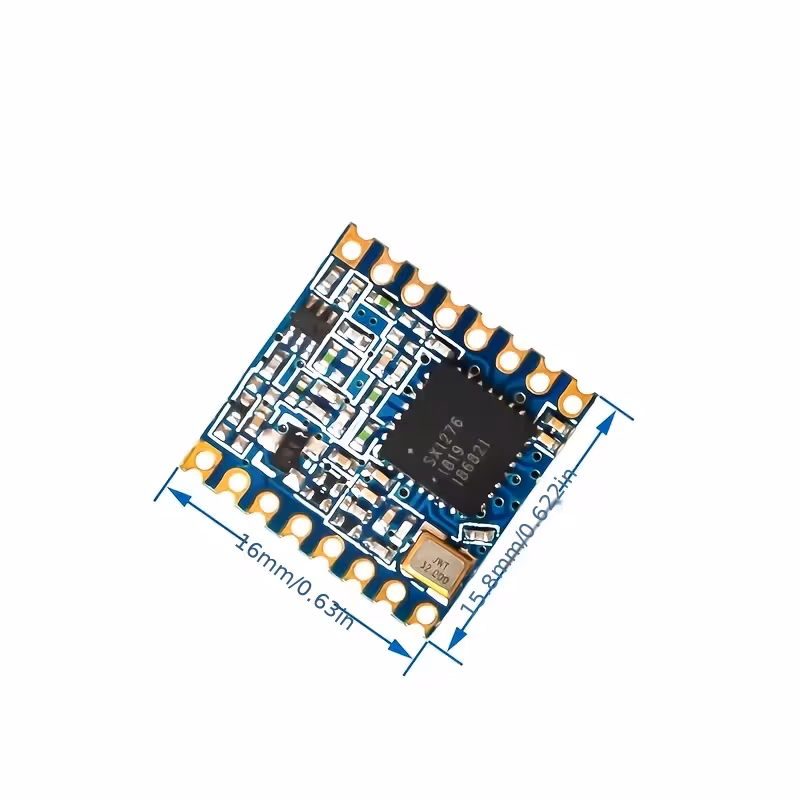

Frequency range: 433/47MHz, Output: Module size: 16*16mm, Output: Interface distance: 2.0mmOutput power: 22dBm/160mW, Output: Transmission current: 110mA@1 6Omw, Output: Reception sensitivity: -137dBm@125K SF=12, Output: Reception current: 6.5mA, Output:Effect method: LORA/GFSK, Output:Sleep current: 1uA, Output:Data interface: SPI four-wire, Output:Open distance: >5000 meters
