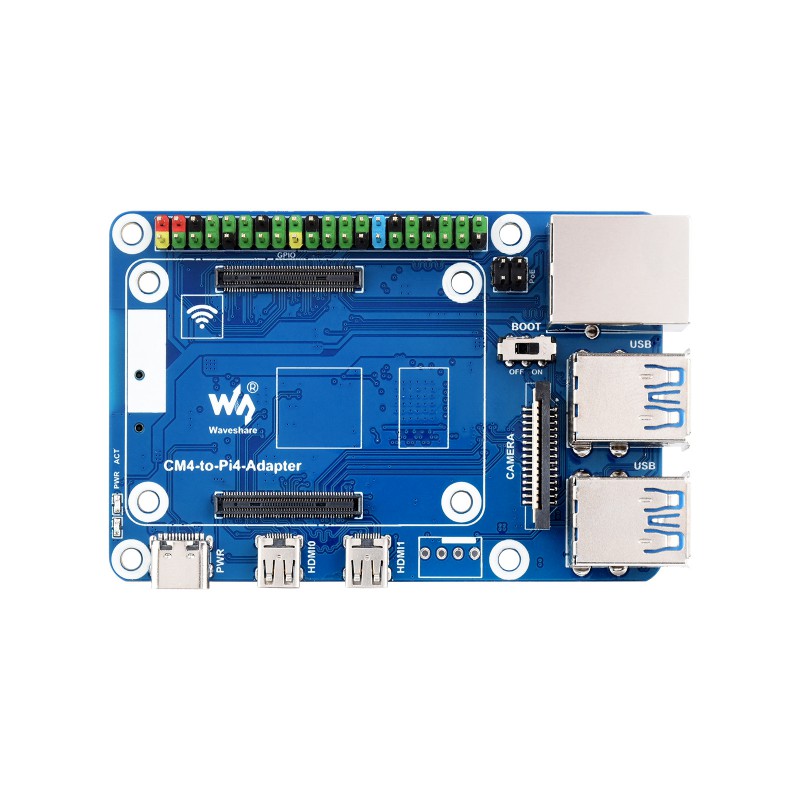

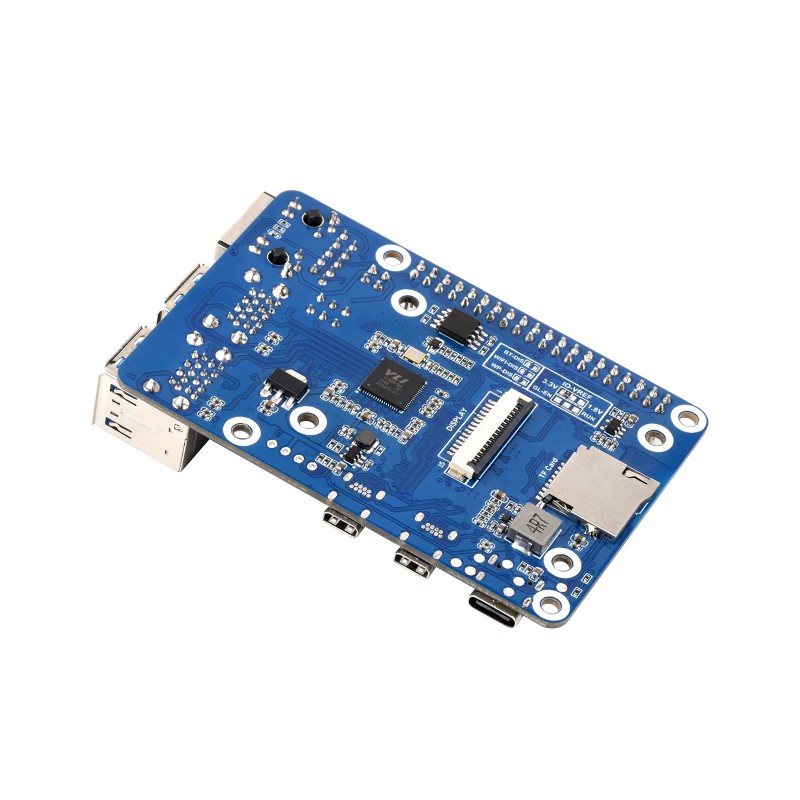

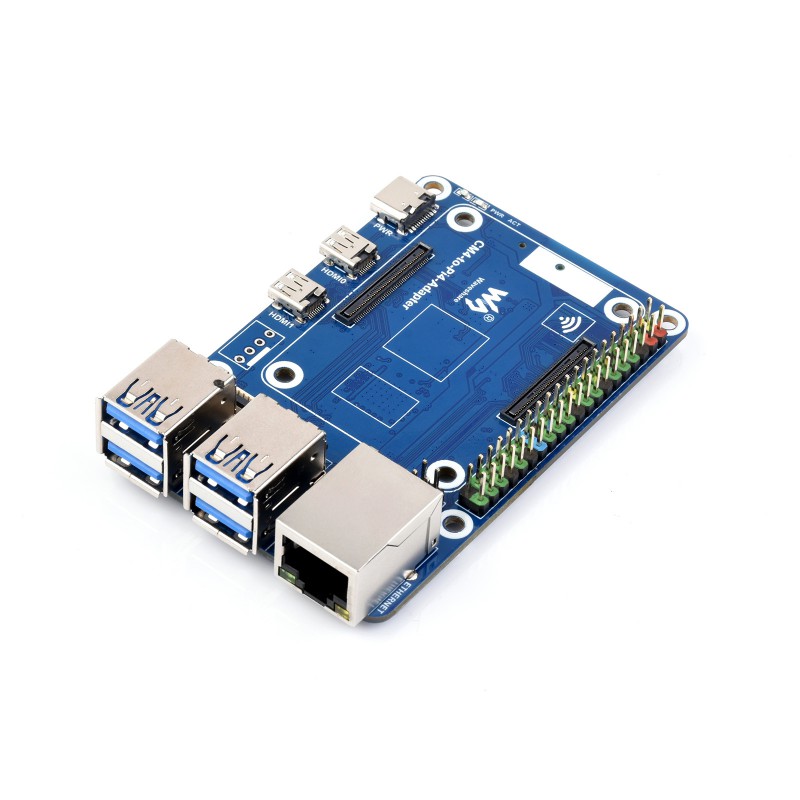

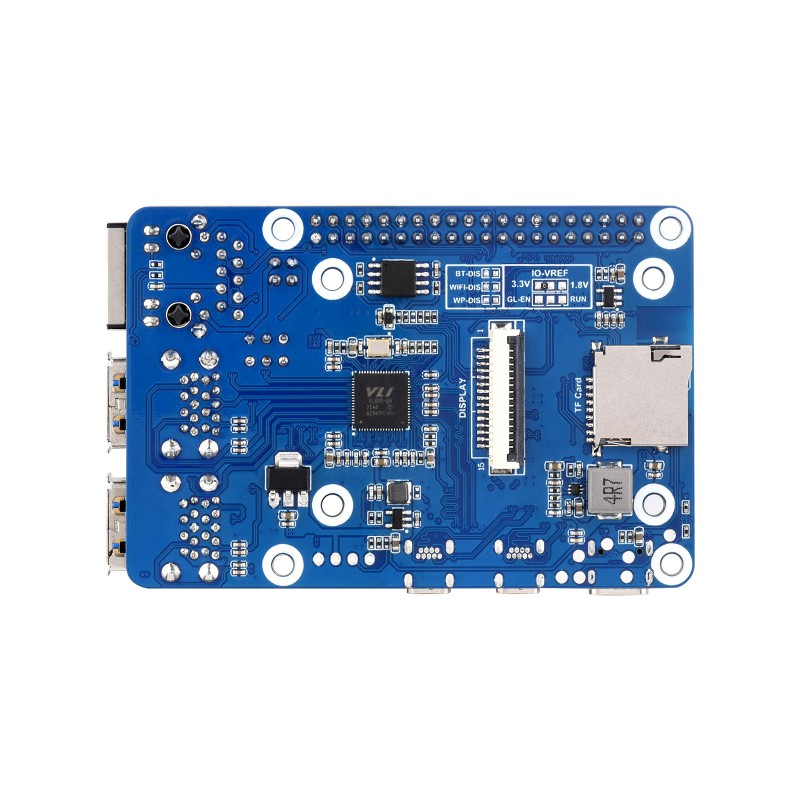

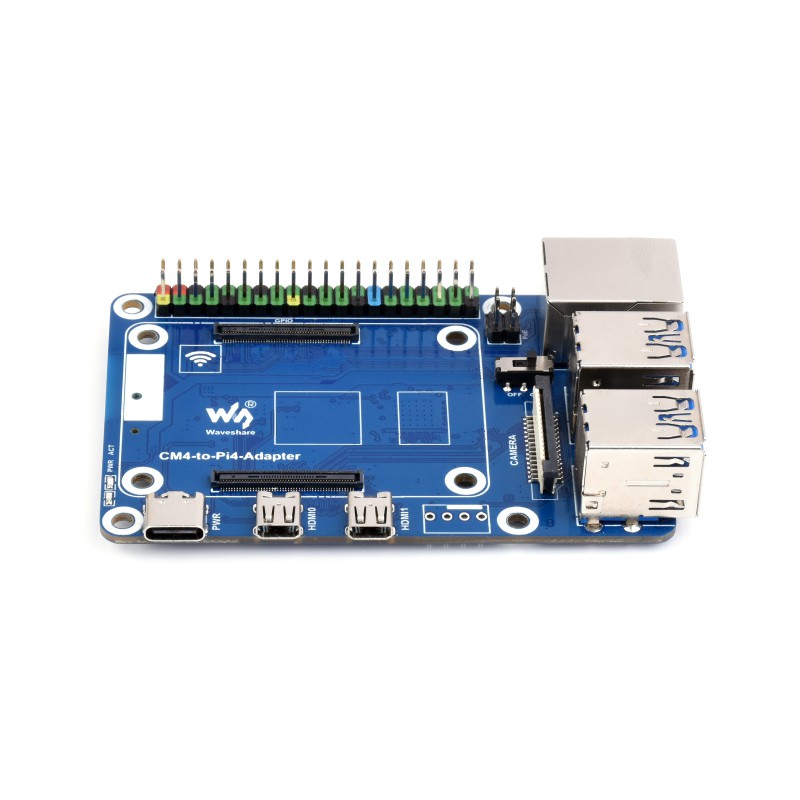

CM4 To Pi 4B Adapter for Raspberry Pi
Alternative Solution for Raspberry Pi 4B
Designed For You
- Need a Pi4B with eMMC function while the TF card is not very stable? This adapter is designed for you
- If you need 4-ch USB3.0 and dislike the slow USB2.0 interface, you can choose this adapter
- Suitable for application scenarios which require wider temperature range
- Need to find an alternative solution for your product which is designed based on the Raspberry Pi 4B
Features at a glance
- Onboard standard CM4 connector, support access to CM4 Lite / eMMc series boards with Quad Core Cortex A72 64-bit processor, more powerful performance
- Easily compatible with the interfaces of Raspberry Pi 4B board
- Onboard 4-ch USB 3.0 ports, compatible with USB 2.0 / 1.1 transmission
- Onboard RJ45 Gigabit Ethernet port, 10 / 100 / 1000 M adaptive
- Onboard PoE header, for connecting PoE HATs
Based on Raspberry Pi CM4
Use CM4 to reproduce the original appearance of the Pi 4B as much as possible
More Cost-effective Choice
* CM4 is optional
Install CM4 Easily
Onboard Standard CM4 Connector
Support Access To Compute Module 4 Lite / eMMC Series Boards
* CM4 is optional
Selection Guide
This adapter board supports all variants of Compute Module 4
Currently available CM4 options (with Wireless) are listed below
| PART NUMBER | RAM | eMMC Flash | Recommended Reason |
|---|---|---|---|
| CMPI4101008 | 1GB | 8GB | With WiFi, suitable for applications with low RAM requirement |
| CMPI4101016 | 1GB | 16GB | |
| CMPI4102008 | 2GB | 8GB | Alternative solution for Pi4B-2GB version With WiFi and eMMC |
| CMPI4102032 | 2GB | 32GB | |
| CMPI4104008 | 4GB | 8GB | Alternative solution for Pi4B-4GB version With WiFi and eMMC |
| CMPI4104032 | 4GB | 32GB |
Check more other CM4 variants
Compatible with Pi 4B Series HATs
Easy access to Pi 4B series HATs or other development projects
for reference only, RS485 CAN HAT (B) is NOT included.
Interface Introduction
Outline dimensions
