Serial Bus Servo Driver Board with Integrated Power & Control for ST/SC Series Bus Servos
Serial Bus Servo Driver Board, Integrates Servo Power Supply And Control Circuit, Applicable for ST/SC Series Serial Bus Servos, Small In Size, Easy to Integrate
Designed for serial bus servo, Integrates Servo Power Supply And Control Circuit
- Supports connecting to a host or MCU to control the serial bus servos
- Allows controlling up to 253 ST/SC series serial bus servos at the same time (sufficient power supply required)
- 9~12.6V voltage input (the input voltage and the servo voltage must be matched)
- Provides convenient serial bus servo control solutions
- Integrates control circuit to ensure the stable operation of serial bus servo
- Compact size and space saving, suitable for integration into sorts of space-limited projects
| Power Supply | DC 9~12.6V (ST series servo) |
|---|---|
| Power supply connector | 5.5 × 2.1mm DC |
| communication interface | UART |
| Dimensions | 42.00 × 33.00mm |
| Mounting hole size | 2.50mm |
| Mounting hole spacing | 37.00 × 28.00mm |
- Servos will provide various feedback like position, speed, torque lock, and operating mode (servo mode, servo motor mode, etc.) for advanced projects requiring closed-loop automatic control
- Ideal choice for building quadruped robots, hexapod walkers, robotic arms and other robotic projects requiring multiple servos
- Compact size, suitable for integration into sorts of space-limited projects
* images here are for reference ONLY
Supports ST/SC series bus servos, and can directly power the servos via DC power jack, supports selecting power supply input according to the servo used
Allows controlling up to 253 SC/ST series serial bus servos at the same time, supports receiving the operating status and various information feedback of each servo
Onboard DC5521 power jack and screw terminal for easy integration into existing projects
Switching the control mode by selecting A or B via the jumper
Connect the driver board to the host via a USB cable to easily control the serial bus servo and receive data feedback, speeding up the project prototyping process
Connect to Raspberry Pi 4B
Connect to Jetson Orin Nano
Connect to PC
Supports directly controlling the serial bus servo via UART communication, and provides SDK which is compatible with various hardware platforms, please refer to the product’s Wiki for more details
Connect to Raspberry Pi Zero
Connect to ESP32 development board
Connect to Arduino board
Connect to STM32 development board
for reference only, the servos, control boards and hosts above are NOT included.

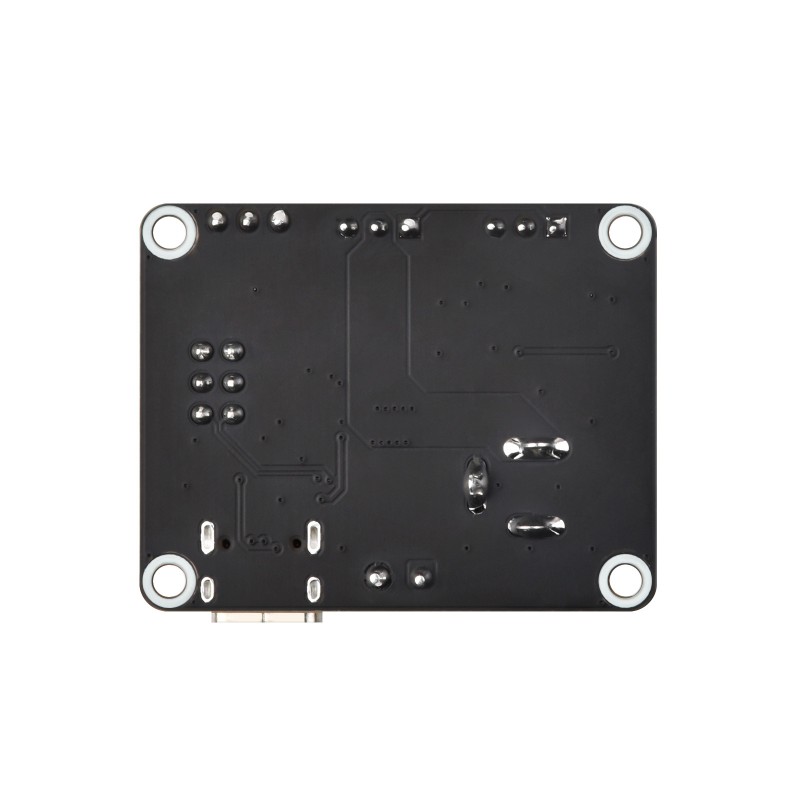

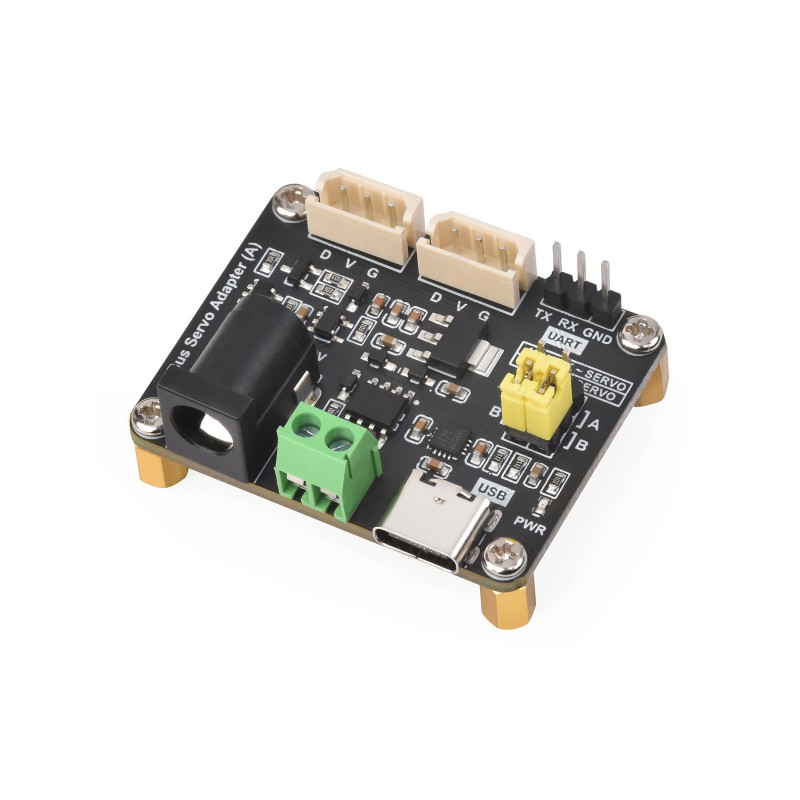

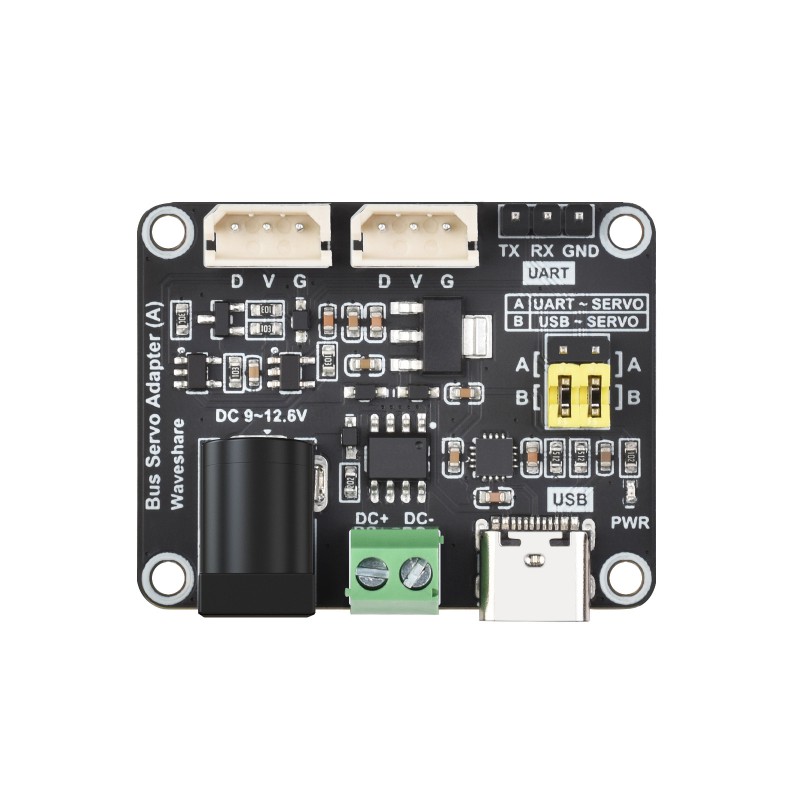

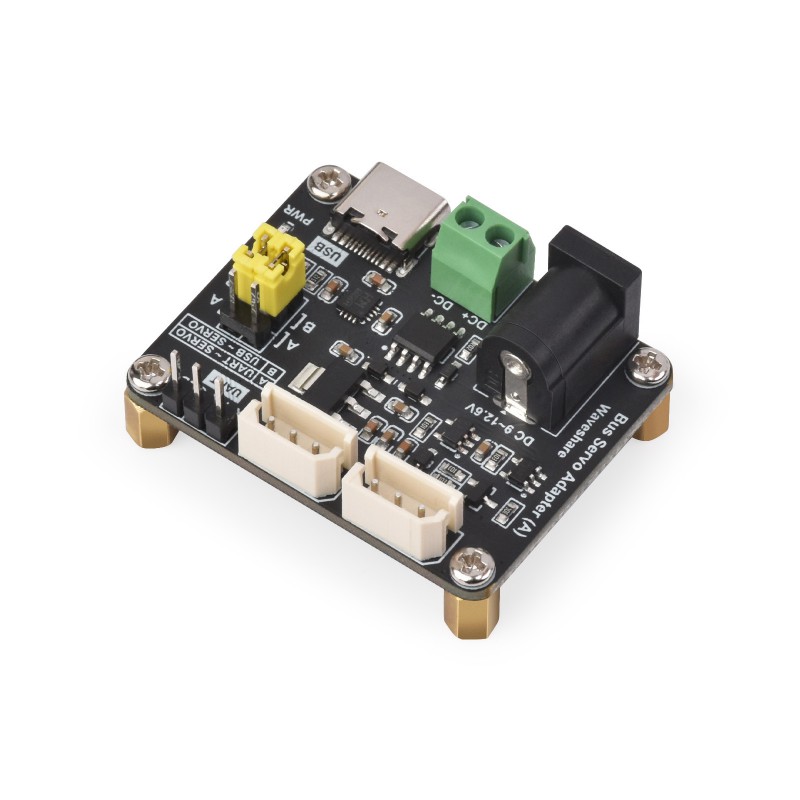

- 5.5*2.1 DC power jack
- Power supply screw terminal
- USB Type-C connector
- Control mode switch jumper
- Serial bus servo control interface
- UART communication interface
