DT-05 WiFi wireless module converts TTL to WiFi

DT-05 WiFi Wireless Module Converts TTL to WiFi

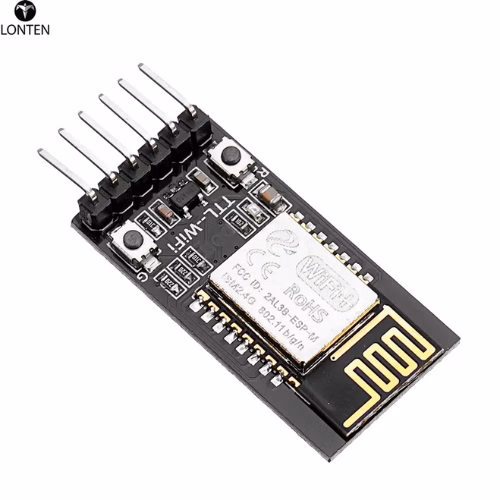

The DT-05 module is based on the ESP-M2 chip, and is designed for real-time data transmission between a Serial (TTL) interface and a WiFi network with full transparency (Transparent Transmission).
The module’s firmware is developed at an industrial level and provides extremely high stability and continuous and reliable transmission capability even in industrial environments.

The product includes an automatic reconnection mechanism in WiFi STA mode and TCP Client mode, which ensures stable communication over time.
The browser-based management interface (Web Interface) has been optimized and allows for convenient configuration of AP, STA, or AP+STA modes, along with full support for protocols such as TCP Server/Client, UDP Server/Client and UDP Broadcast.
The module also supports AT Commands, making it a cost-effective, smart WiFi solution that is easy to integrate into existing systems.

Main features:
Based on a high-quality ESP-M2 module.

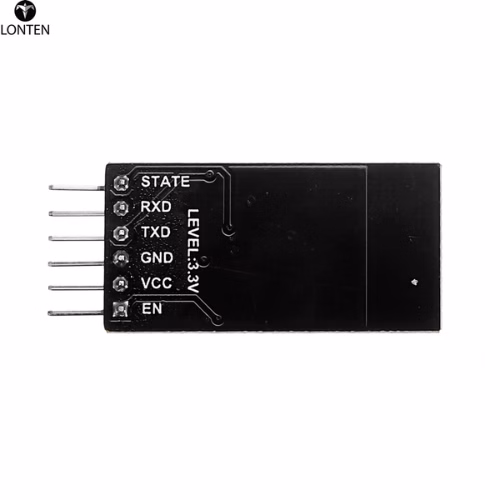

Includes pins: STATE, TXD, RXD, EN.
Supports real-time data transfer between TTL and WiFi or the cloud.
Equipped with a low-current consumption mechanism and a working status indicator light.
Suitable for direct replacement of existing wired communication interfaces (Serial).
Supports OTA Firmware Upgrade – software update over the air.
Includes a built-in WEB server for managing and setting parameters via a browser.
Operating modes: AP, STA, AP+STA.
Working voltage: 4.5V–6.0V, TTL voltage of 3.3V (compatible with 5V).
Dimensions: 34×17×4 mm.
Average current consumption: 80mA, data transmission up to 170mA, deep sleep mode 20µA.
Temperature range: -40°C to +125°C.
Supports communication speeds (Baud Rate):
300 / 600 / 1200 / 2400 / 4800 / 9600 / 19200 / 38400 / 57600 / 74800 / 115200 / 230400 / 460800 / 921600 / 1843200 / 3686400.
Supports IP settings, SSID, password, DHCP, DNS and automatic address assignment.
Enables automatic scanning of access points (Hotspots) in the environment.
Supports protocols: TCP Server / TCP Client / UDP Server / UDP Client / UDP Broadcast.
Includes IO4 port to display WiFi status.
Main uses:
Smart Home
Wireless data collection and transmission
Smart Car Control
Wireless printers
Smart LED lighting
Industrial control and IoT systems
Package contents:
1× DT-05 WiFi Serial Transparent Module
