Bluetooth 4.0 Motherboard
BLE400 is a mother board designed for BLE4.0 Bluetooth 2.4G Wireless Module .Onboard battery holder, multi power supplies are available .All the IOs are accessible for easy expansionIntegrates CP2102 for debugging.LEDs and user keys, compatible with other official boards, easy to use.
What’s on the BLE400
- Wireless module connector: for easily connecting modules like Core51822
- MCU pins expansion connector
- I2C interface
- SPI interface
- 5V/3.3V power input/output: usually used as power output, also common-grounding with other user board
- USB connector: USB TO UART via onboard convertor CP2102
- Debugging interface
- UART interface
- Battery holder
- User LEDs
- User keys
- Reset button
- CP2102
- USB TO UART jumper
- LEDs & Keys jumper
BLE400 Dimension
- PACKAGE CONTENT
Weight: 0.086 kg
- BLE400 x 1
- USB type A to Mini-B cable x 1
1
2
2

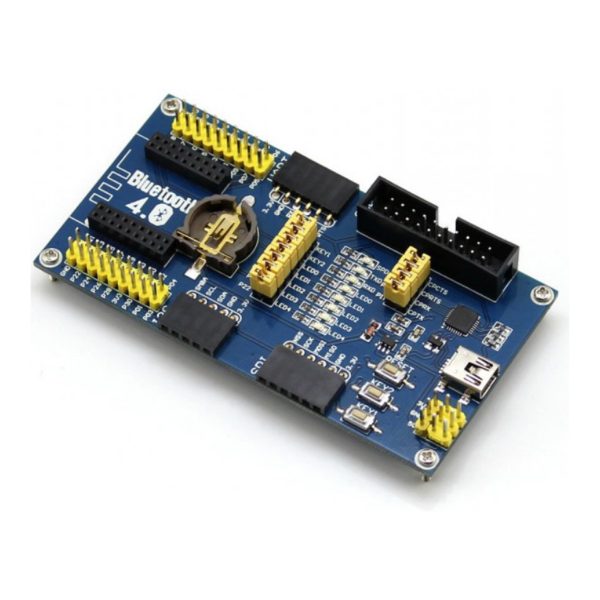

BLE400 Bluetooth 2.4G RF mother board

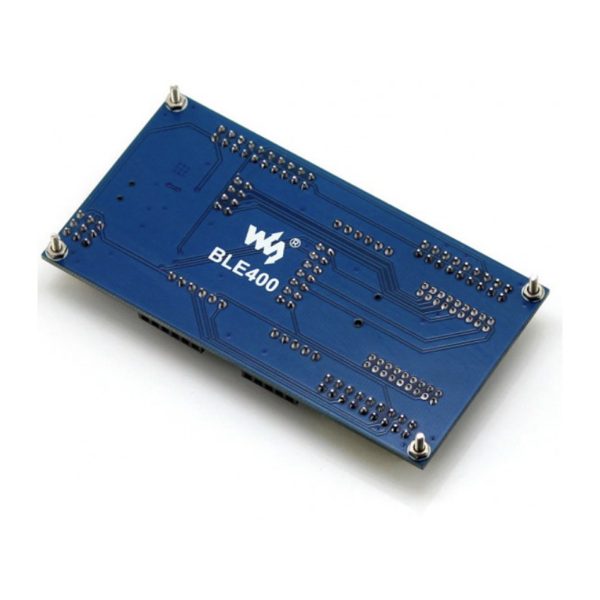

BLE400 Bluetooth 2.4G RF mother board back view

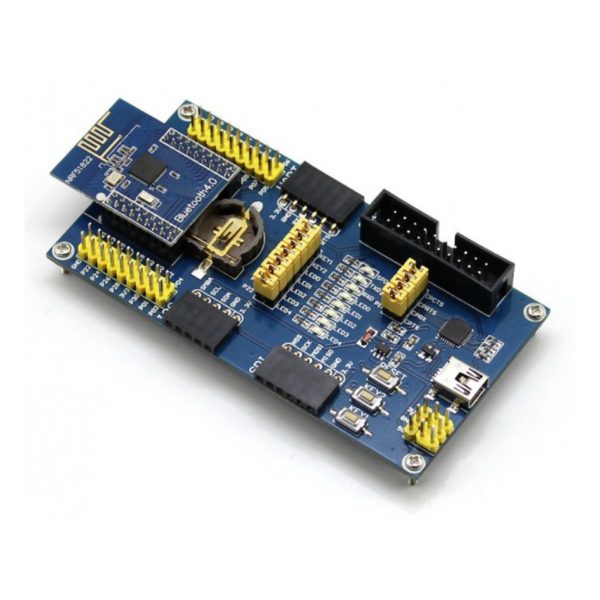

Connecting with the wireless module

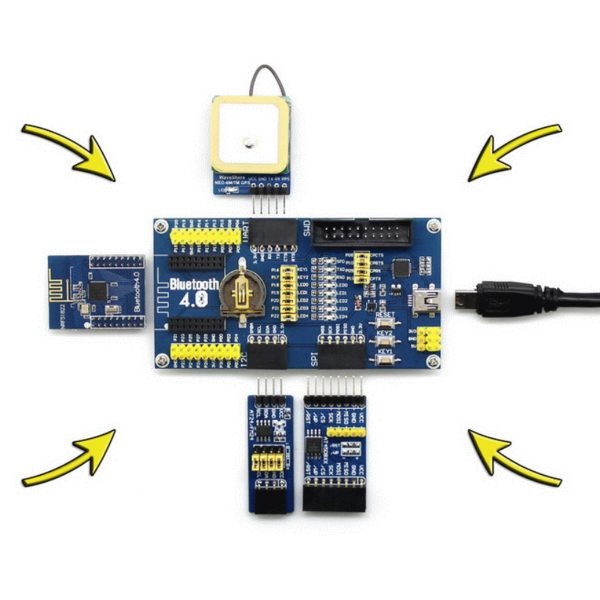

Connecting with various accessories
Note: module and accessories in the photos are NOT included in the price.
Downloads
Development resources: demo codes, schematic, datasheets, etc.
Wiki: www.waveshare.com/wiki/BLE400
