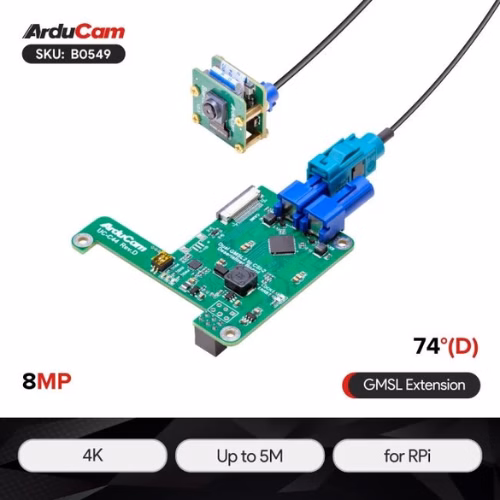

Arducam GMSL2 8MP Camera Extension Kit for Raspberry Pi

Long-term use – reliable and high-quality image transmission over distances of up to 15 meters, without loss of image quality.
GMSL2 technology – advanced SerDes technology from ADI, which provides high bandwidth and extremely minimal latency.
High-quality streaming – SONY IMX219 sensor with 8 megapixel resolution, ensuring exceptional image quality.
Simple and economical solution – transmission of all signals in a single cable, which reduces weight, power consumption and installation complexity.
Backward compatibility – also supports the GMSL1 series (according to the notes on the data sheets), which allows for easy and quick upgrades.
Diverse uses – beyond automotive uses, the system is also suitable for robotics, security systems, industrial automation, precision agriculture and smart cities.

The Arducam GMSL2 8MP Extension Kit is designed to extend the connection range of a Raspberry Pi camera up to 15 meters, while maintaining high image quality and without latency. The kit uses GMSL2 (Gigabit Multimedia Serial Link v2) technology, which allows for a simple and efficient connection with a standard network cable (Ethernet).

Main features
Long transmission range – allows camera connection up to 15 meters with a standard network cable

High resolution – includes an 8-megapixel IMX219 sensor for sharp and clear photography

Simple operation – Plug & Play, no complicated settings or installations required

Working voltage:

Transmitter card (Tx): 5V/1A

Camera itself: 3.3V/500mA

Working temperature range: minus 20°c to 85°c

Power consumption: up to 6.6 watts

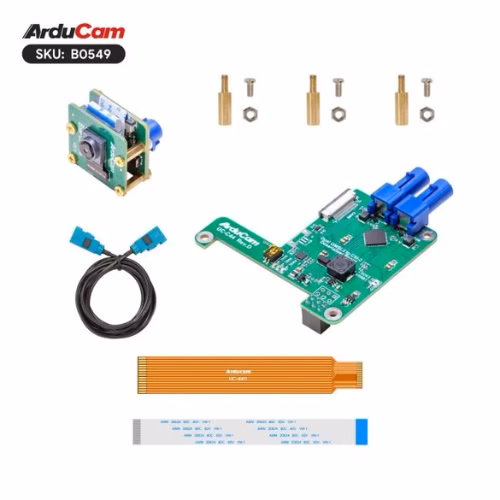

What’s included in the kit

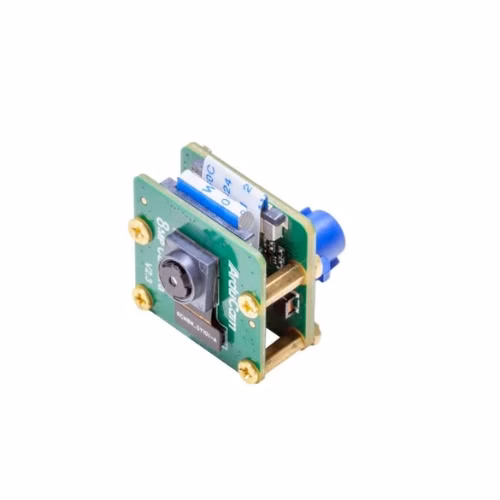

Transmitter board (Tx) for connecting the camera

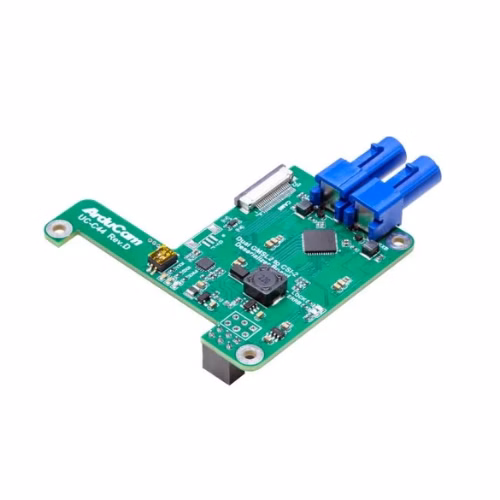

Receiver board (Rx) for connecting to the Raspberry Pi

1 meter network cable (Ethernet)

Two flexible cables (FFC) 8 cm long

Screws for installation

Advantages
The camera can be placed at a great distance from the main computer – suitable for use in industrial systems, robotics, experimental photography or installations in places Hard-to-reach

Maintain transmission and video quality even over long distances

Suitable for single-camera or multi-camera projects

Compatibility
Compatible with Raspberry Pi Camera V2, HQ Camera and Arducam IMX219 cameras

Can be integrated into stereoscopic or multi-camera photography projects

Common uses
Remote monitoring and control systems

Robotic applications

Scientific experiments and educational projects

Industrial automation and quality control

Technical data
Parameter value
GMSL2 technology (up to 15 meters)
Resolution 8 megapixels
Operating voltage 5V/1A for transmitter, 3.3V/500mA for camera
Temperature range minus 20°c to 85°c
Power consumption 6.6 watts
Cables 1 meter network cable, 8 cm FFC cables ×2
Plug & Play installation
