Arducam 12MP*4 477P Quadrascopic Camera Bundle Kit

• Four in One: Combine four cameras into one frame, each camera with a max resolution of 2028(H)x1520(V)
• Wide Compatibility: Supports multi-platform multi-camera solutions such as Raspberry Pi, Jetson Board and many more
• Naitve to Raspberry Pi: No need to install additional driver for this camera kit
• More Applications: Synchronized video streams with Raspberry Pi could be used for many use cases (e.g., stitching, 3D sensing, tracking, …)
• We have enabled VR (Virtual Reality), AR(Augmented Reality), and other applications like SLAM (Simultaneous Localization and Mapping)
• For NVIDIA JetsonL4t 35.x Jetpack5.x and above versions , you will need the latest CamArray Kit firmware (no earlier than the 2023.02.03 version) to access it.(otherwise you can only use them on previous JetPack versions).

Overview

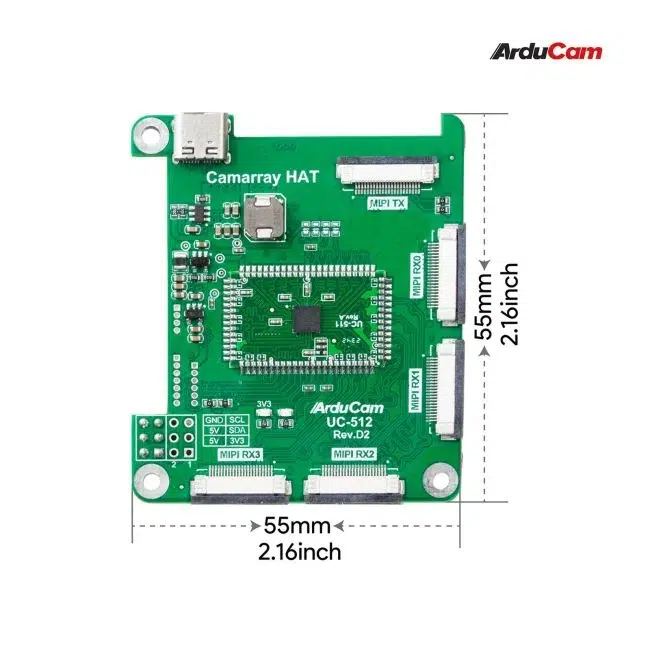

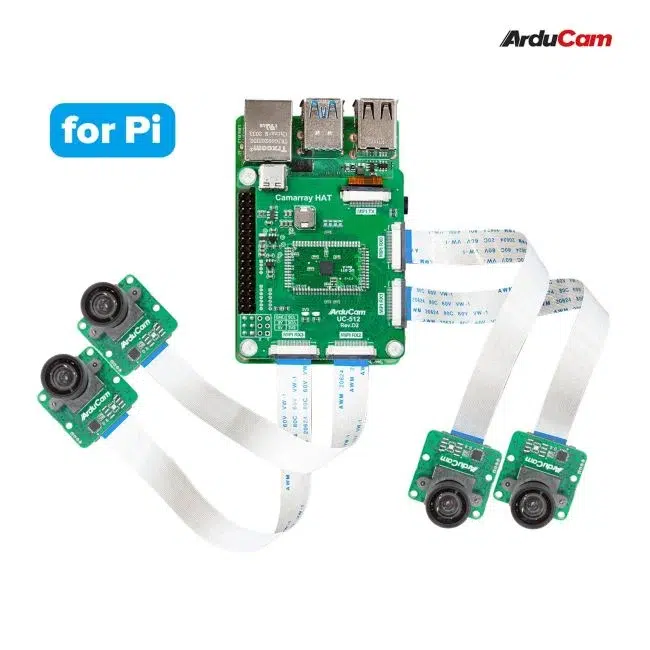

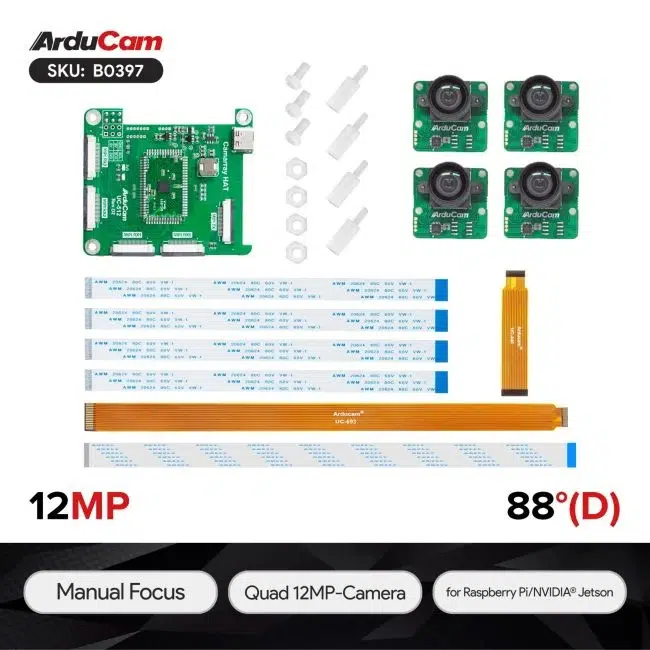

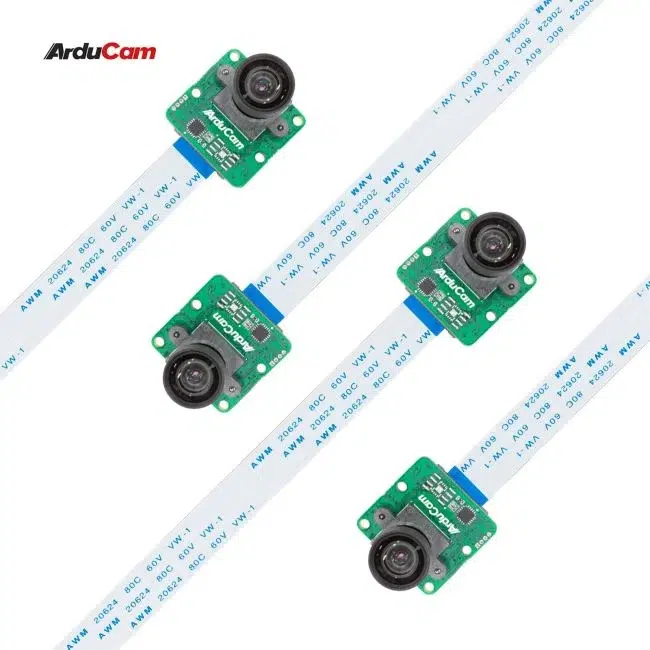

This Arducam quadrascopic camera bundle incorporates four 12MP cameras, and the cutting-edge MIPI stereo camera breakthrough from Arducam – The Arducam Camarray HAT.

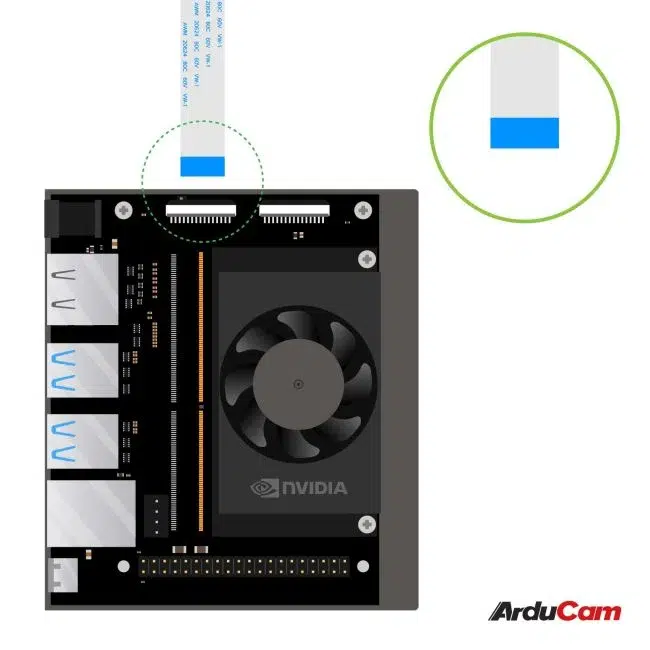

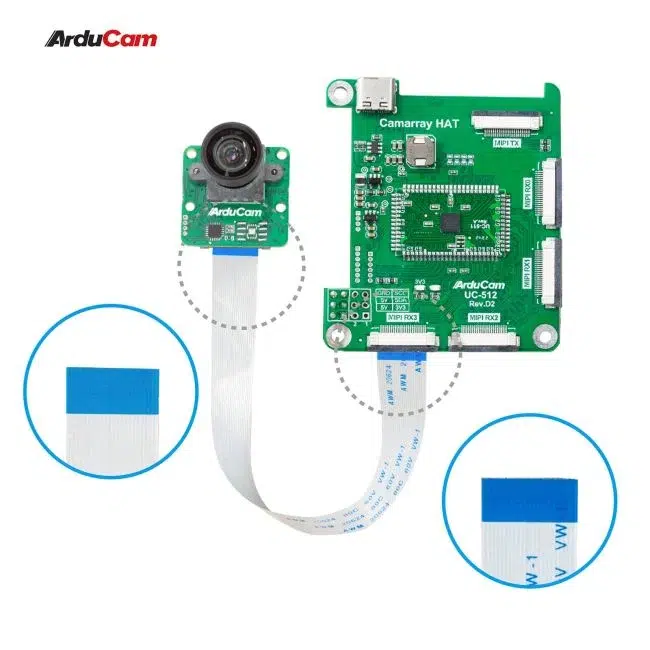

As the upgraded version of Arducam Synched Stereo Camarray HAT, the Camarray further pushes the multi-camera limits and doubles the interfacing capabilities to allow 4 synchronized MIPI camera modules to be interfaced to a single MIPI CSI-2 slot on prevailing single-board computers like Raspberry Pi, Jetson Board.

Applications

• Robot navigation
• Objective tracking
• 3D measurement
• 3D reconstruction
• Depth-related vision applications

Features

• Four in One: Combine four cameras into one frame, each with a max resolution of 1/4(1014(H)x760(V)); the maximum output you can get: 4056 x 3040 for still images and 1920×1080 for video. Please note the frame rate for video and still images will drop to half the frame rate you would normally get with a single camera
• Wide compatibility: Compatible with the latest Raspberry Pi camera software (libcamera) and uses the official Pi camera tuning algorithm. It also supports multi-platform multi-camera solutions such as Raspberry Pi, Jetson Board and many more. And this Camarray HAT is also compatible with Raspberry Pi 3 and Raspberry Pi (V1/V2/HQ) cameras.
• Multiple camera processing technologies have enabled VR (Virtual Reality), AR(Augmented Reality), and other applications like SLAM (Simultaneous Localization and Mapping).
• Applications: Synchronized video streams with Raspberry Pi could be used for many use-cases (e.g., stitching, 3D sensing, tracking, …) instead of investing in an expensive video multiplexer hardware.
