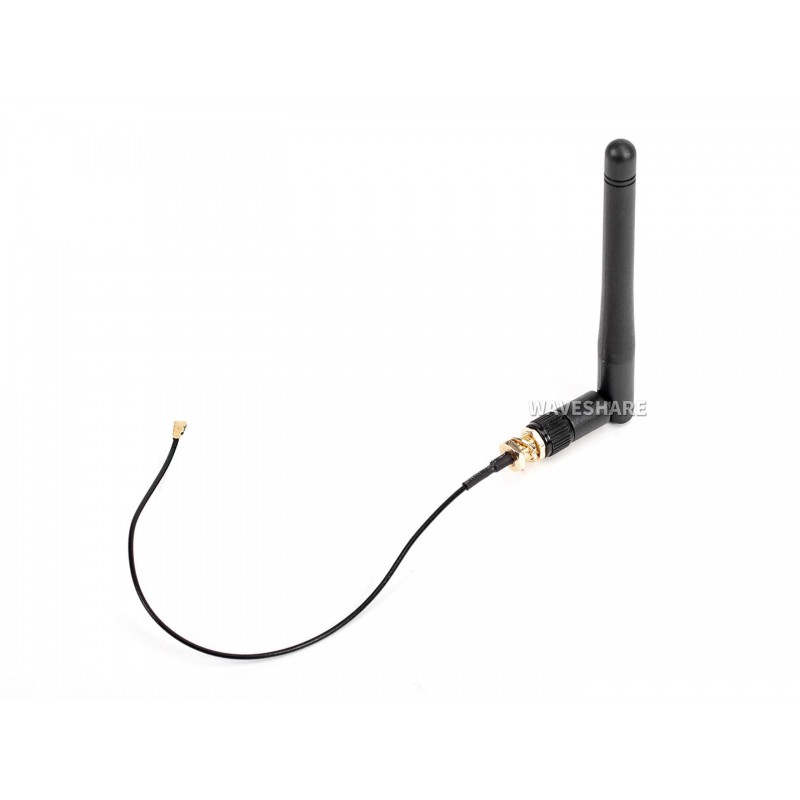

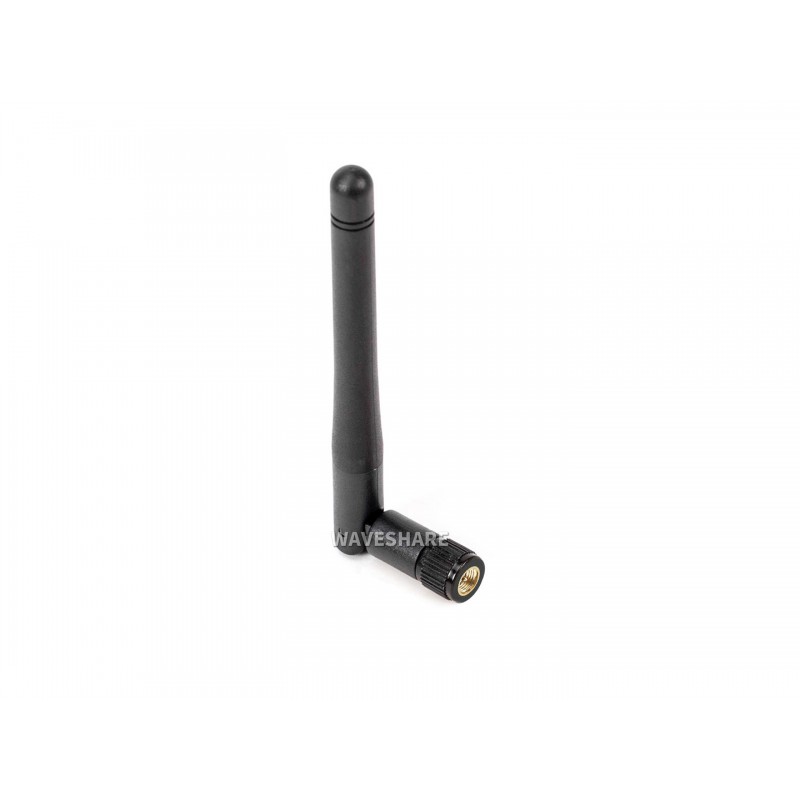

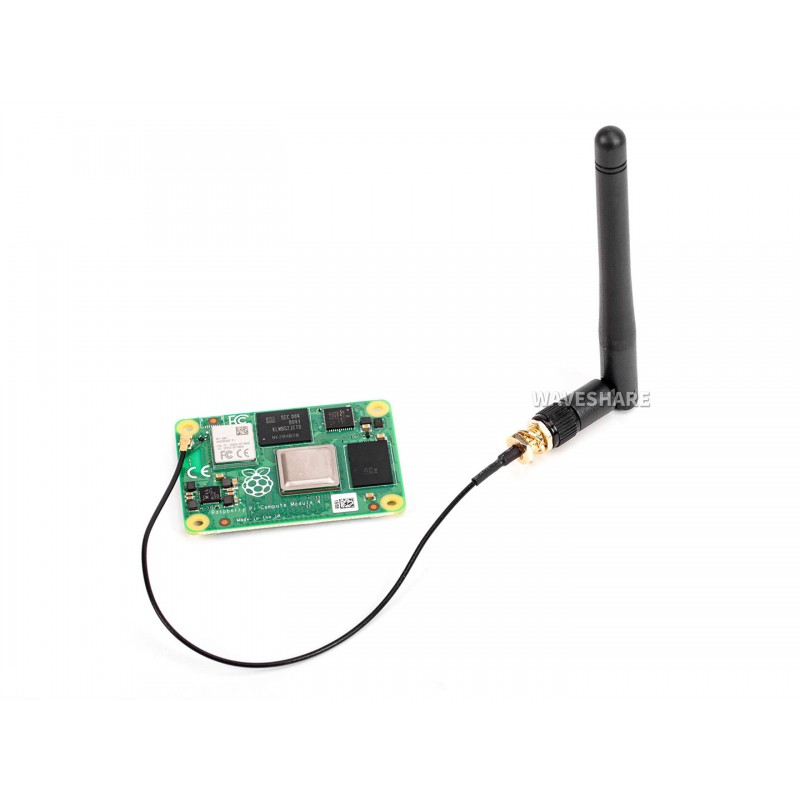

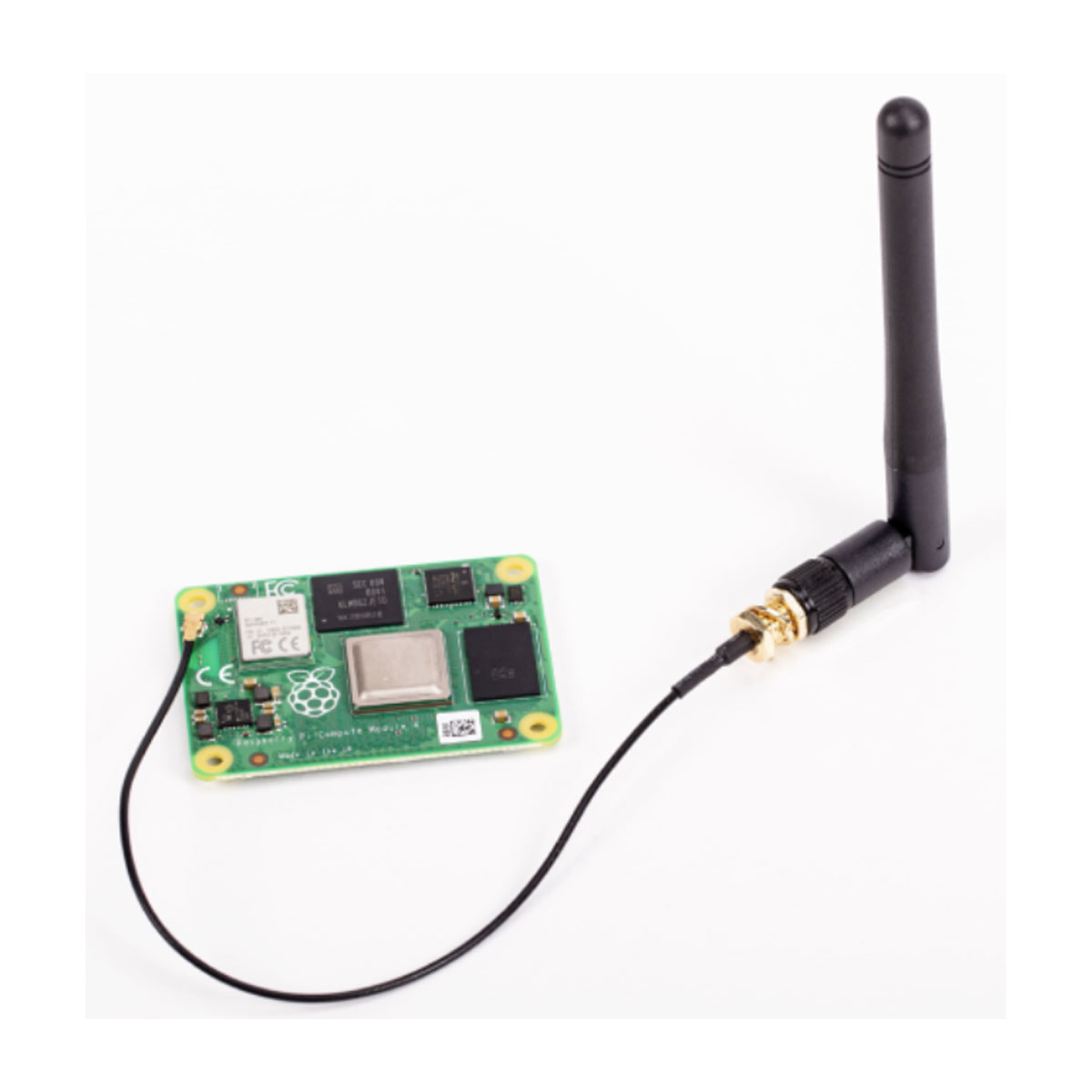

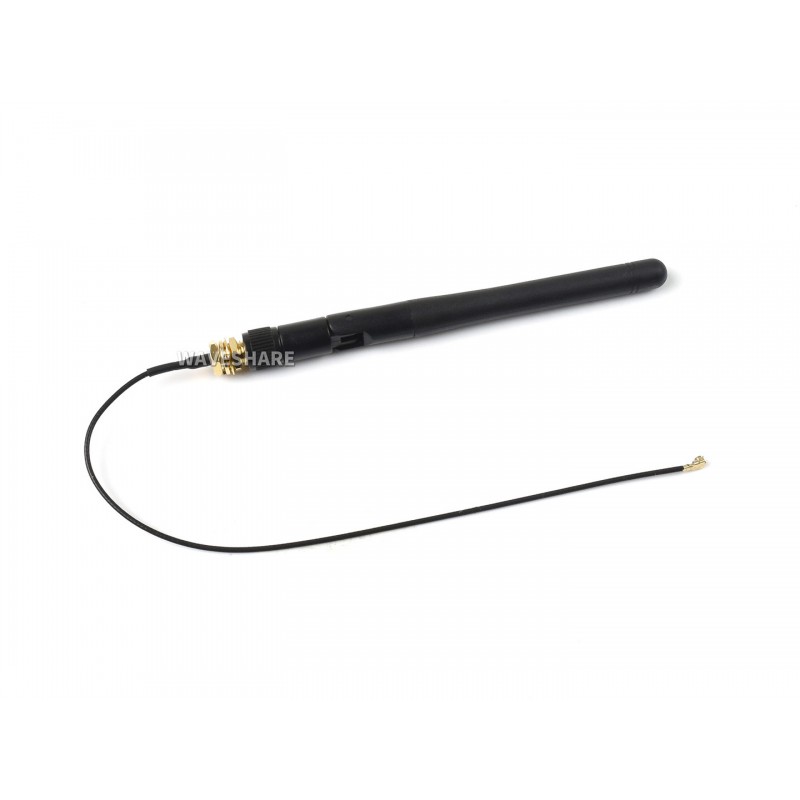

Compatible Antenna for Raspberry Pi Compute Module 4 CM4, 2.4G/5G WiFi
Compatible Antenna For Raspberry Pi Compute Module 4, Supports 2.4G/5G WiFi Frequency Band
Antenna Specification
| FREQUENCY RANGE | 2400-2500/5150-5850 MHz | MAXIMUM POWER | 10 W |
|---|---|---|---|
| BANDWIDTH | 100–700 MHz | DIMENSIONS | 109 × 10 mm |
| VSWR | ≤1.92 | CONNECTOR | SMA male central pin |
| PEAK GAIN | 2±0.5 dBi | BODY MATERIAL | TPEE |
| OUTPUT IMPEDANCE | 50 Ω | OPERATING VOLTAGE | -20˚C ~ + 70˚C |
| POLARISATION | Vertical | RADIATION | Omnidirectional |
Outline Dimensions
