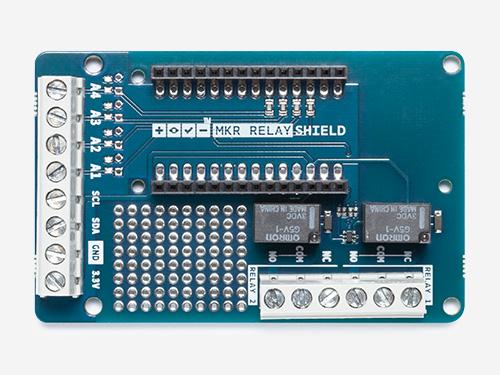

ARDUINO MKR RELAY PROTO SHIELD

The MKR Relay Proto Shield allows you to easily command relays with your MKR board. The shield provides two on board relays and a small prototyping area if you need to add some other component to your project.

The MKR Relay Proto Shield gives you the ability to work with relays and space to add other components to your projects with its small prototyping area. It includes two relays on the board, with NO, COM, and NC connections.

Features:

• Operating voltage 3.3V (supplied form the host board)
• Works with battery powered board
• Screw terminal blocks for easy connections
• Carry current: 2 A
• Max operating voltage: 125 VAC, 60 VDC
• Max operating current: 1 A
• Max switching capacity: 62.50 VA, 30W
