The Power Card: Lite for micro BBC bit can form the control hub for your robotics project, check the first three servos and has 5 x RGB LED ZIP aboard.

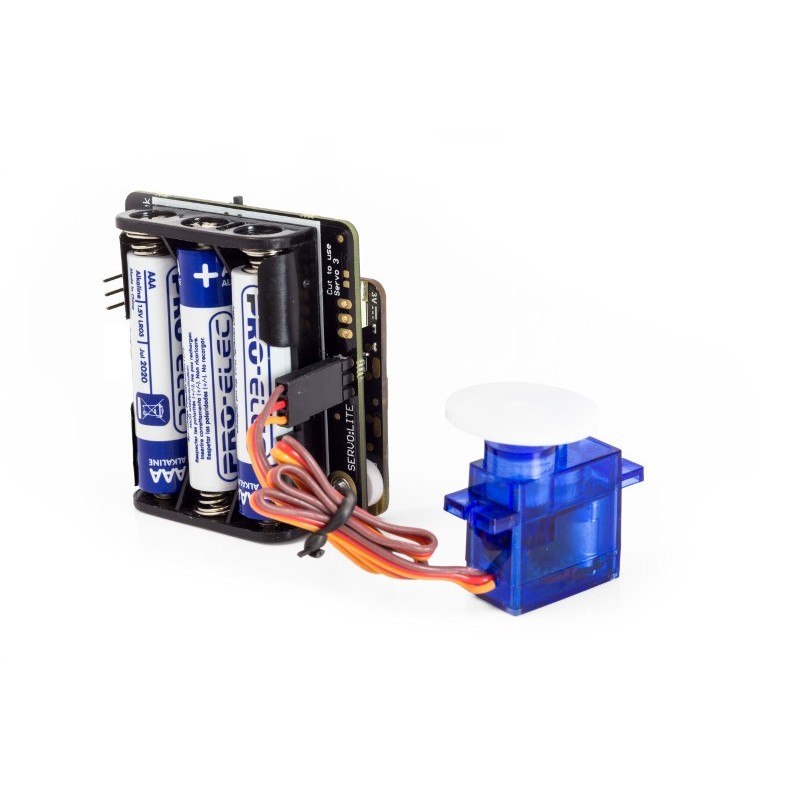

The Power Card: Lite for micro BBC bit is a single card that allows you to connect and easily control low power servomotors (servos must operate at 3.3V) using the microphone: bit micro. It is connected to microphone: bit using five bolts. Connect two servos in standard configuration and can drive up to 3 servos if the LED ‘ZIP’ addressable are not necessary.

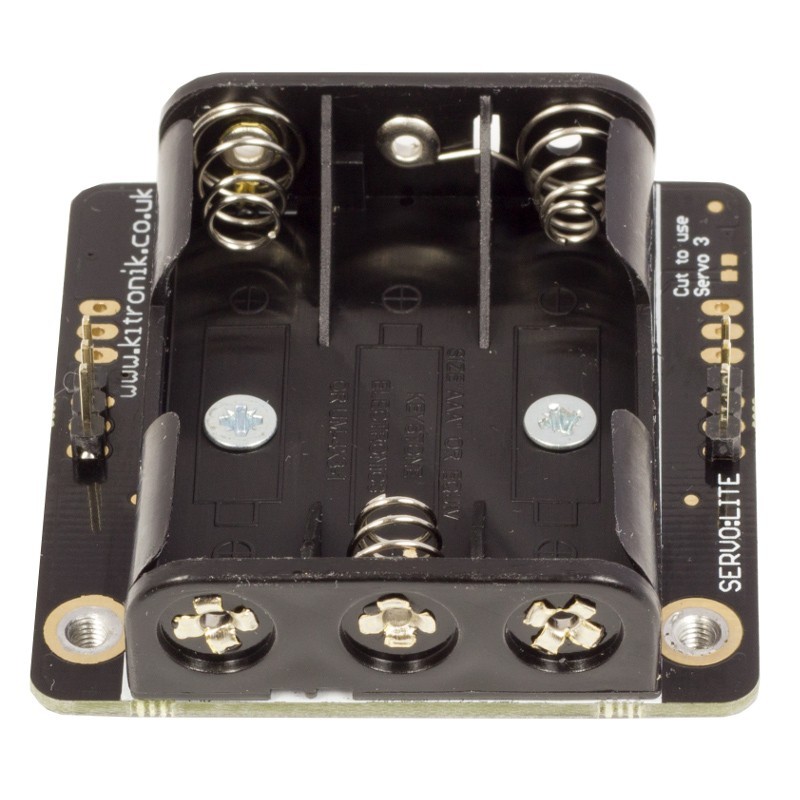

It is powered by 3 AAA batteries and also feeds the microphone: BBC bit map has an on / off switch, so when it is not being used the batteries will not be drained.

Features:

• Connect two servos in standard con?guration and can drive up to 3 servos if the addressable ‘ZIP’ LEDs aren’t needed.
• Powered by 3 AAA batteries that also supply power to the BBC microbit (not supplied).
• On / off switch.

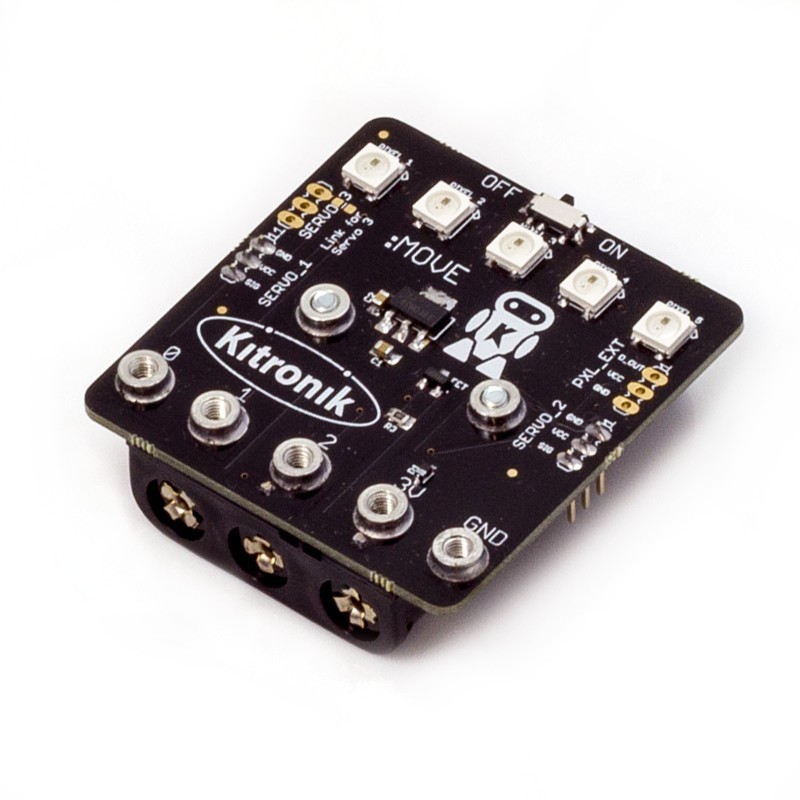

• 5 x RGB addressable ZIP LEDs (NeoPixel compatible). Additional external ZIP LEDs can be connected to the board.

Contents:

• 1 x Servo:Lite board with battery holder pre-fitted.
• 5 x M3x8 Counter sunk Pozi Steel screws.
• 1 x Perspex spacer.

Dimensions:

• Length: 55mm.
• Width: 52mm.
• Height: 17mm.
