5 The next generation – Raspberry PI
4G
Stronger model than ever , Raspberry Pi 5 builds on the phenomenal success of Raspberry Pi 4
In comparison with its predecessor, it delivers a 2-3x increase in CPU performance, and a significant uplift in GPU performance
alongside improvements to camera, display, and USB interfacing
!Quad-core ARM A76processor (64-bit – 2.4 GHz) and integrated VideoCore VII 800 MHz GPU for 2 to 3 times the overall performance of version 4 and vastly improved graphics rendering
New board featuressuch as ON/OFF button and PCIe 2.0 slot, integrated RTC connector to exploit even more possibilities and enhancements
…Completely redesigned and improved connectivity with high-speed Micro-SDport for OS, 2x simultaneous 4K-60 fps for display, 2x USB 3.0 5GBps for transfers
!2 RAM versions to choose from: 4GB and 8GB (LPDDR4X-4267) for maximum power
Processor Features:
2.4GHz quad-core 64-bit Arm Cortex-A76 CPU, with cryptography extensions, 512KB per-core L2 caches, and a 2MB shared L3 cache
• VideoCore VII GPU, supporting OpenGL ES 3.1, Vulkan 1.2 • Dual 4Kp60 HDMI® display output with HDR support
• 4Kp60 HEVC decoder

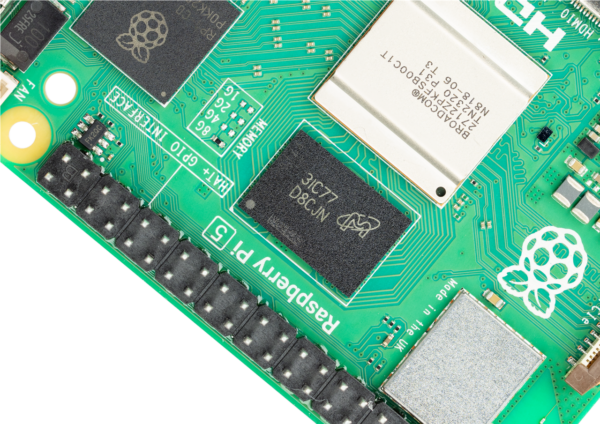

• LPDDR4X-4267 SDRAM
(4GB and 8GB SKUs available at launch)
• Dual-band 802.11ac Wi-Fi®
• Bluetooth 5.0 / Bluetooth Low Energy (BLE)
• microSD card slot, with support for high-speed SDR104 mode

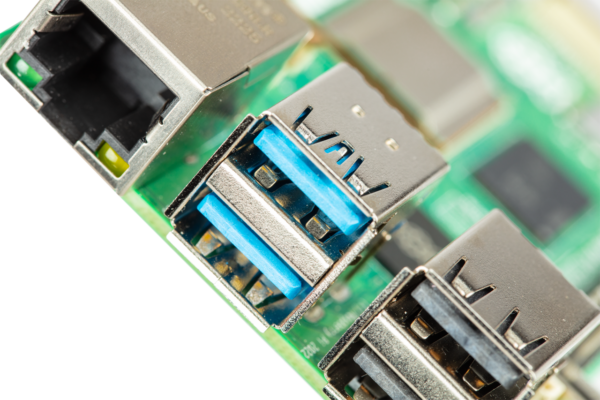

• 2 × USB 3.0 ports, supporting simultaneous 5Gbps operation
• 2 × USB 2.0 ports

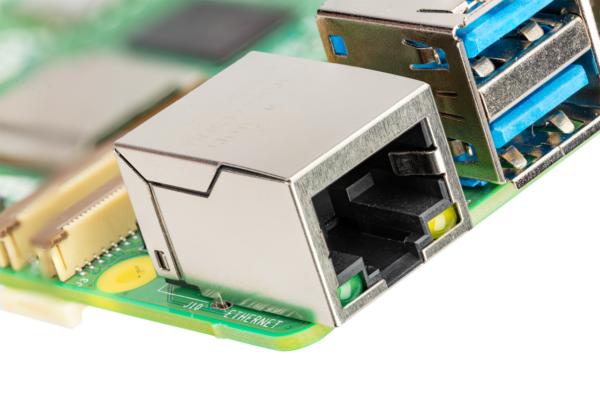

• Gigabit Ethernet, with PoE+ support (requires separate PoE+ HAT)
• 2 × 4-lane MIPI camera/display transceivers
• PCIe 2.0 x1 interface for fast peripherals (requires separate M.2 HAT or other adapter)
• 5V/5A DC power via USB-C, with Power Delivery support • Raspberry Pi standard 40-pin header
• Real-time clock (RTC), powered from external battery
• Power button
Raspberry Pi 5 will remain in production until at least January 2035 For a full list of local and regional product approvals,
please visit pip.raspberrypi.com
